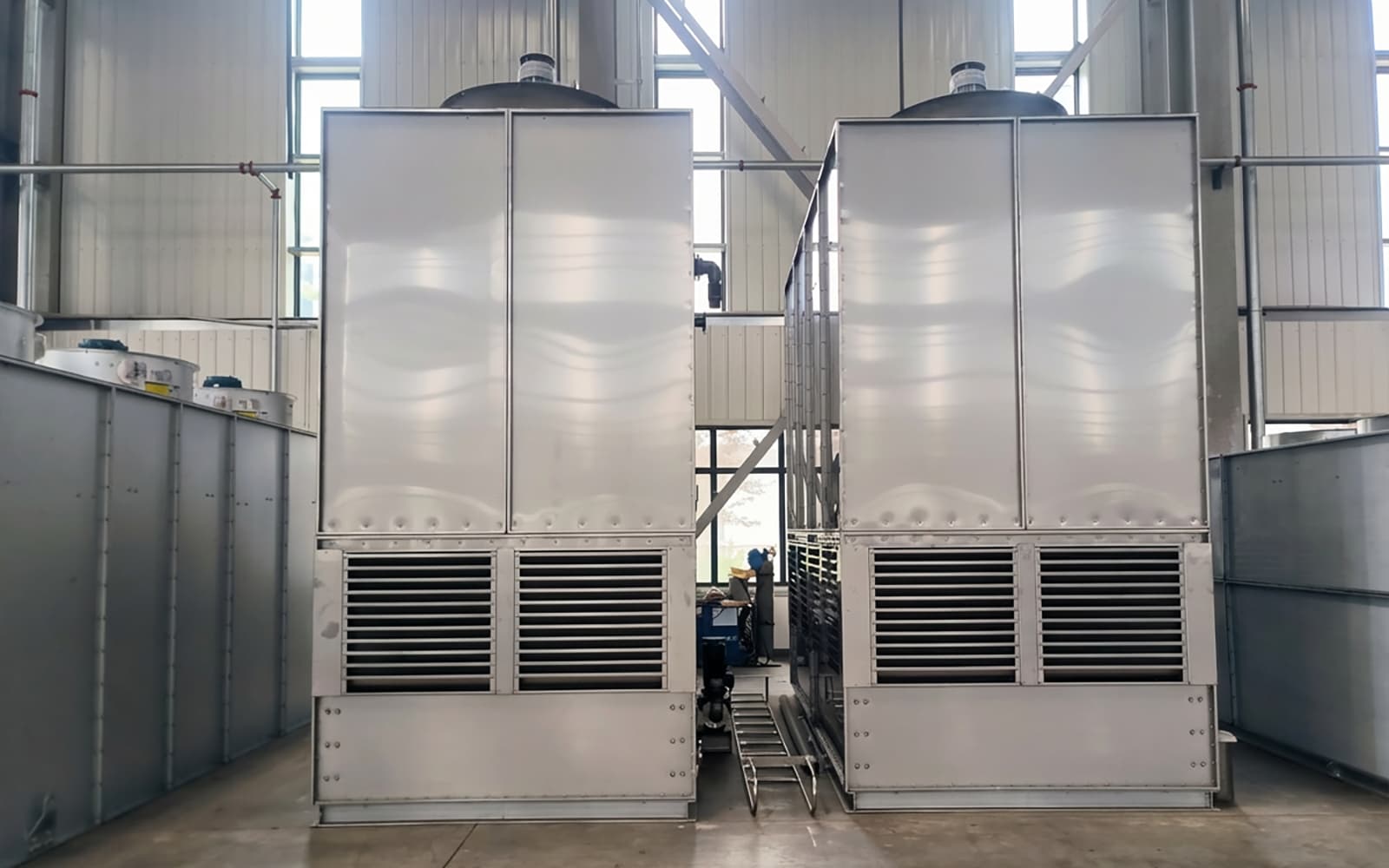

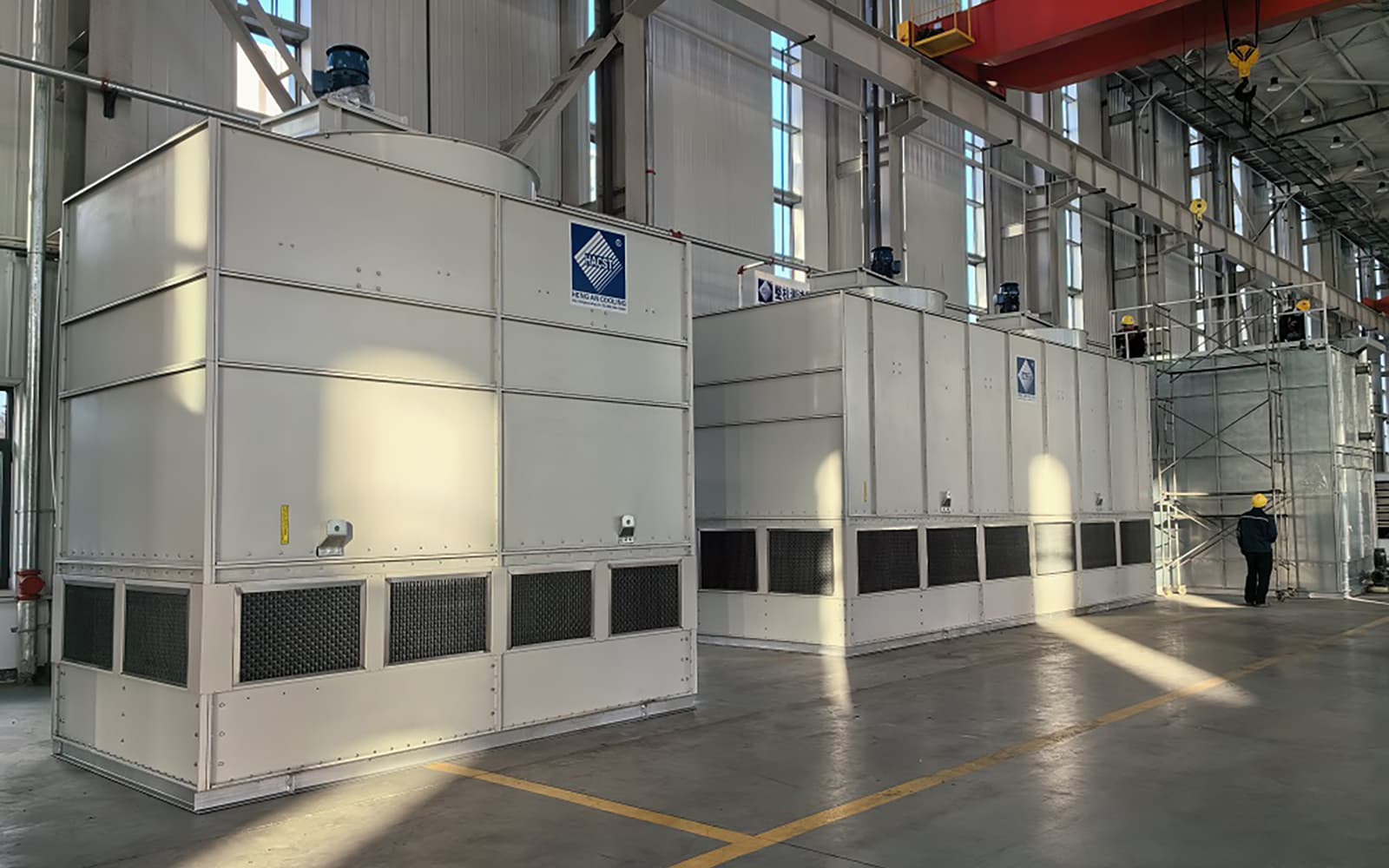

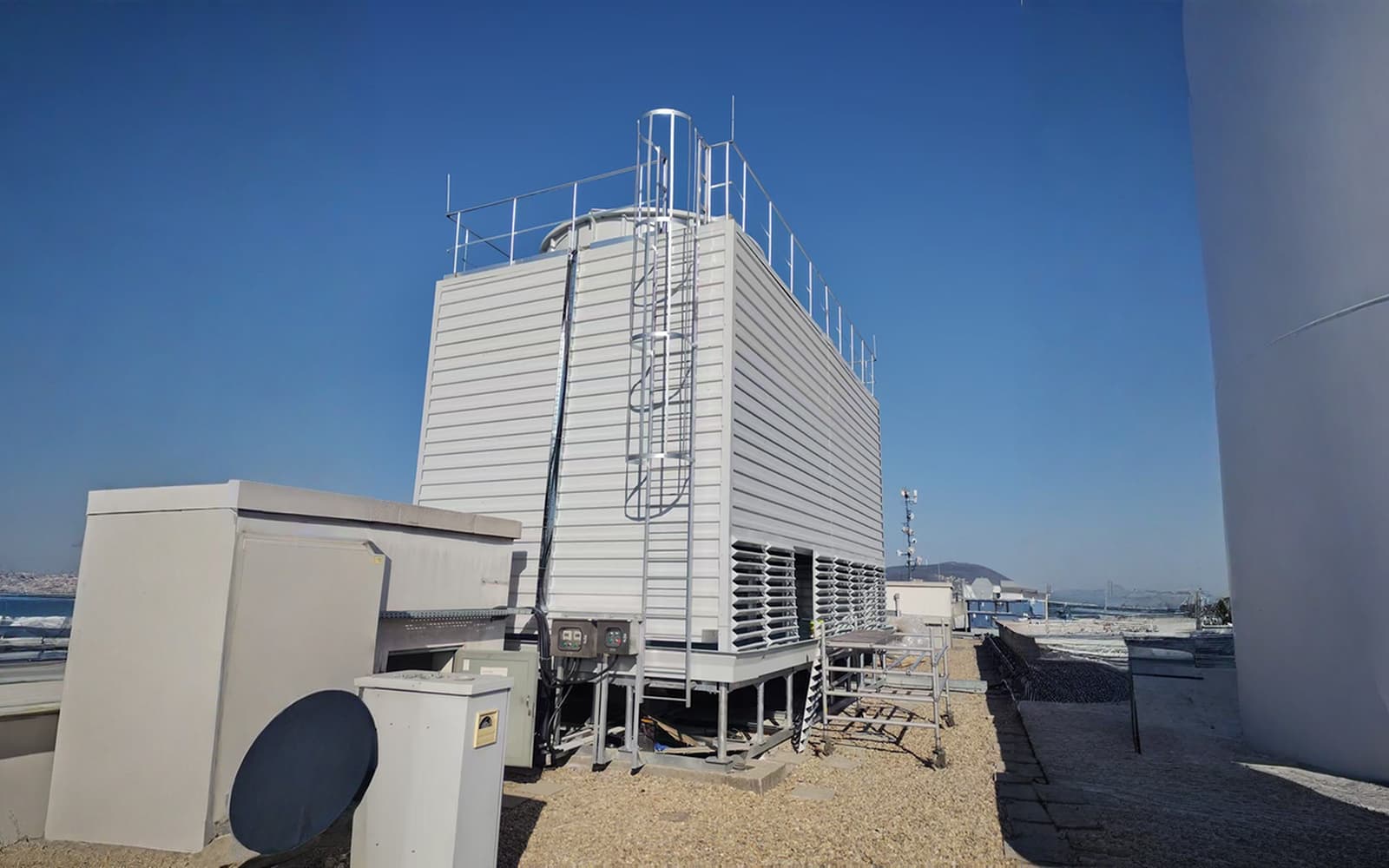

DFNL Counter Flow Open Cooling Tower Get a Quote Now
High efficiency, save energy to the largest extent
Fit with various environment changes in different indutries
Matched equipment running normaly
Completely comply with national standards
CASING AND WATER BASIN
Fiberglass reinforced polyester (FRP) is applied with water-resistance resin and high quality fiberglass mat. With good moisture, high gel,high strength, spray the gel-coat on FRP parts by machine and is thermal formed.
FAN & DRIVING SYSTEM
All cooling tower fans with adjustable pitch blades are applied to being balanced, it operates stably and quietly. Material chosen are A.B.S, aluminum alloy for normal standard, F.R.P or stainless steel material available for option.Small capacity cooling tower adopts direct drive low noise fan. Bigger capacity fan equipped with Belt drive speed reducer or Gear box.
WATER DISTRIBUTION
Using high coefficient rotating sprinkler head made of plastic or aluminum alloy could reduce the pressure of friction loss, and the water can be distributed evenly to achieve the max thermal cooling performance.
FILL PACKING
Used high quality & improved performance PVC with good material, it is high cooling efficiency and anti-corrosive & UL V-0. The surface of infill is corrugated to increase the filling pitch to make sure that infill is clog-free and overcome the problem of water quality. Special material for option if high entering water temperature.
FRAME
The framework is made of hot dip galvanized steel (HDGS), to makes the cooling tower in rust-free, durable and long service life.
| Product Model | Design Flow | Inlet Water Temperature | Outlet Water Temperature | Wet-Bulb Temperature | Length | Width | Fill Height | Fan Power | Fan Diameter |
| m3/h | °C | °C | °C | mm | mm | mm | kW | mm | |
| 50 | 50 | 37 | 32 | 28 | 2000 | 2000 | 1000 | 1.5 | 1500 |
| 100 | 100 | 37 | 32 | 28 | 2800 | 2800 | 1000 | 4 | 1800 |
| 150 | 150 | 37 | 32 | 28 | 3300 | 3300 | 1000 | 5.5 | 2200 |
| 200 | 200 | 37 | 32 | 28 | 3600 | 3600 | 1500 | 7.5 | 2400 |
| 250 | 250 | 37 | 32 | 28 | 4200 | 4200 | 1500 | 7.5 | 2800 |
| 300 | 300 | 37 | 32 | 28 | 4800 | 4800 | 1500 | 11 | 3000 |
| 350 | 350 | 37 | 32 | 28 | 5000 | 5000 | 1500 | 11 | 3200 |
| 400 | 400 | 37 | 32 | 28 | 5000 | 5000 | 1500 | 15 | 3200 |
| 450 | 450 | 37 | 32 | 28 | 5800 | 5800 | 1500 | 15 | 3500 |
| 500 | 500 | 37 | 32 | 28 | 5800 | 5800 | 1500 | 18.5 | 3500 |
| 550 | 550 | 37 | 32 | 28 | 6000 | 6000 | 1500 | 18.5 | 4000 |
| 600 | 600 | 37 | 32 | 28 | 6200 | 6200 | 1500 | 22 | 4000 |
| 650 | 650 | 37 | 32 | 28 | 6600 | 6600 | 1500 | 22 | 4200 |
| 700 | 700 | 37 | 32 | 28 | 7000 | 7000 | 1500 | 22 | 4500 |
| 750 | 750 | 37 | 32 | 28 | 7200 | 7200 | 1500 | 22 | 5000 |
| 800 | 800 | 37 | 32 | 28 | 7200 | 7200 | 1500 | 30 | 5000 |
| 850 | 850 | 37 | 32 | 28 | 7500 | 7500 | 1500 | 30 | 5000 |
| 900 | 900 | 37 | 32 | 28 | 7500 | 7500 | 1500 | 37 | 5000 |
| 950 | 950 | 37 | 32 | 28 | 7500 | 7500 | 1500 | 37 | 5500 |
| 1000 | 1000 | 37 | 32 | 28 | 7500 | 7500 | 1500 | 45 | 5500 |
