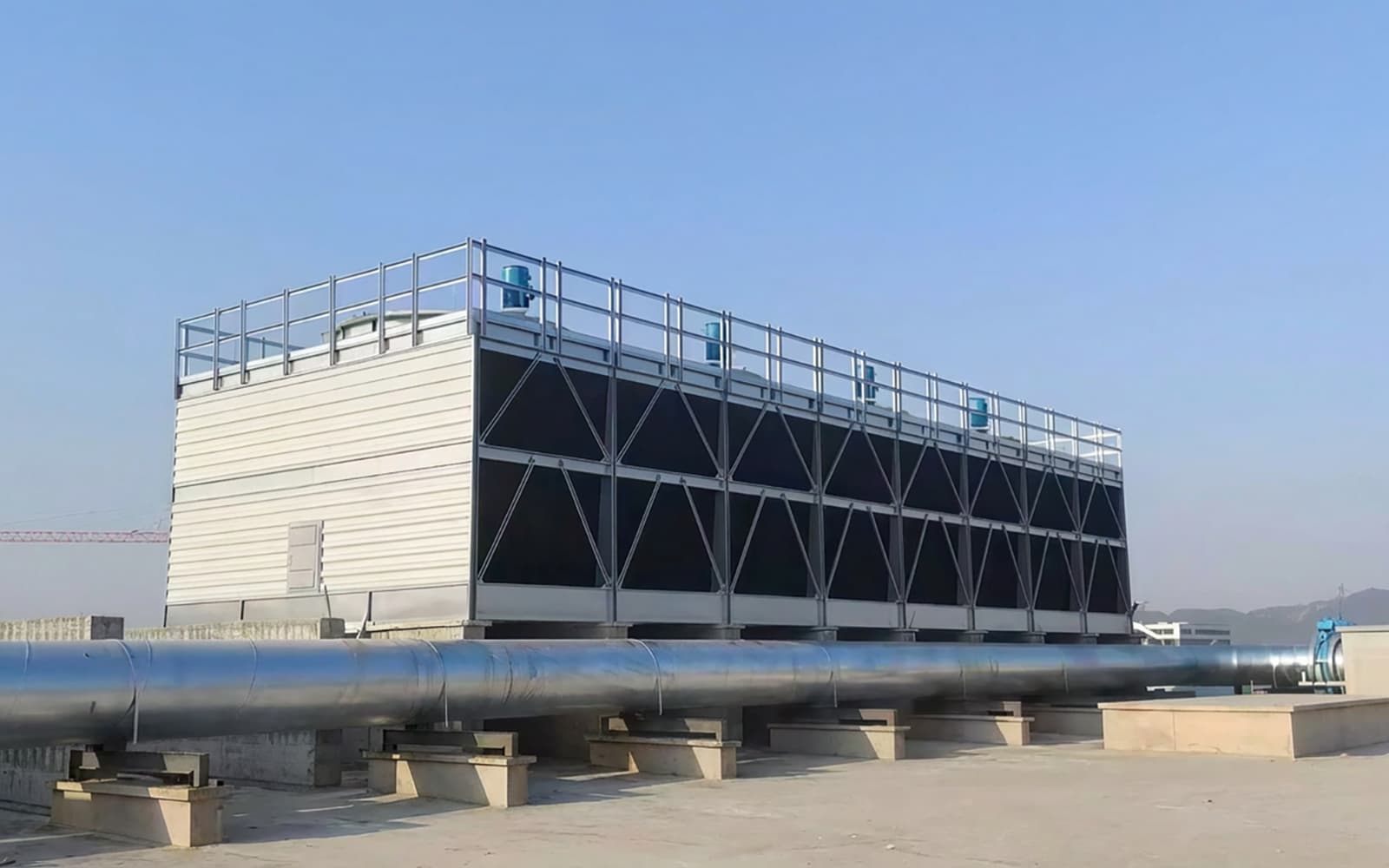

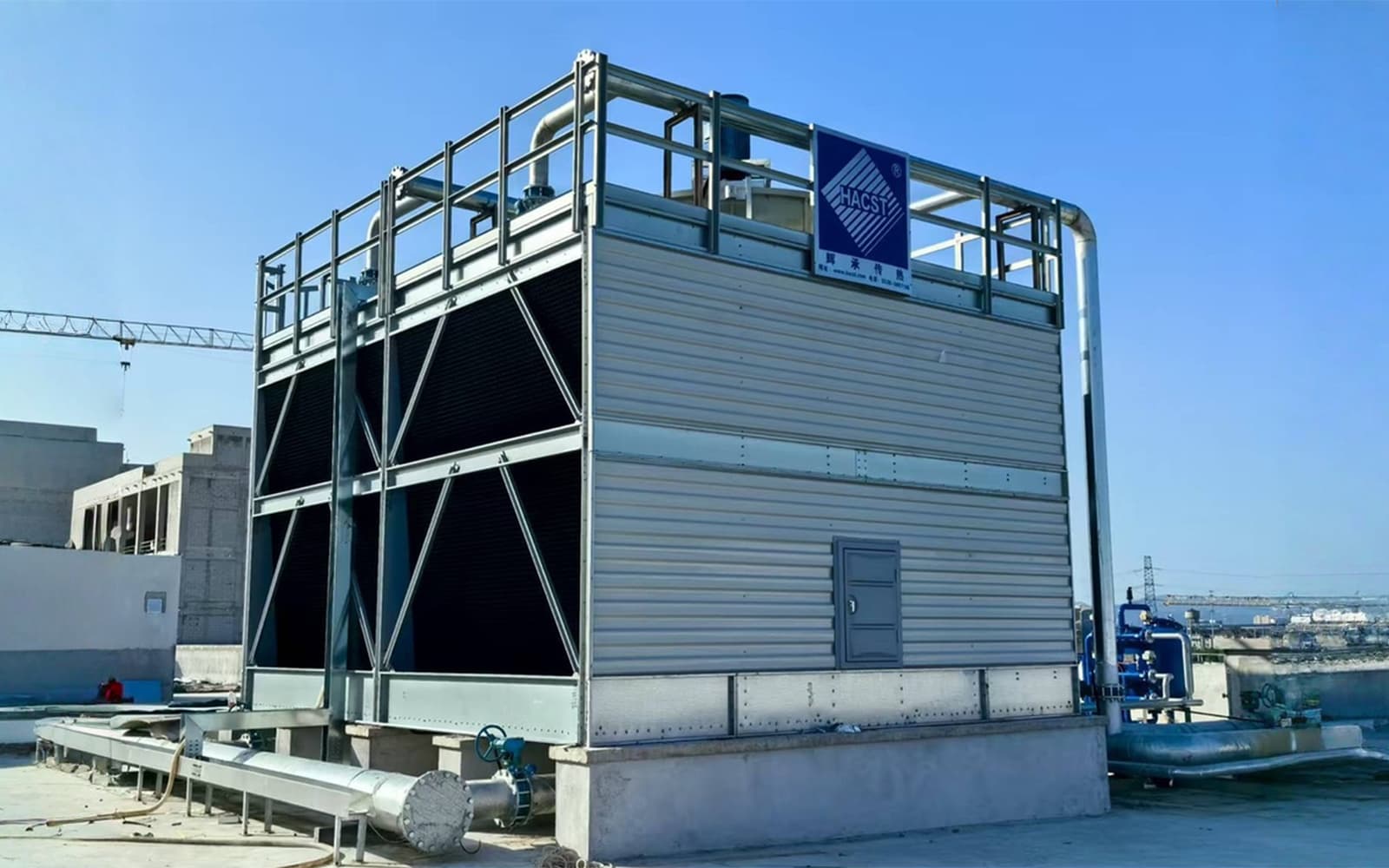

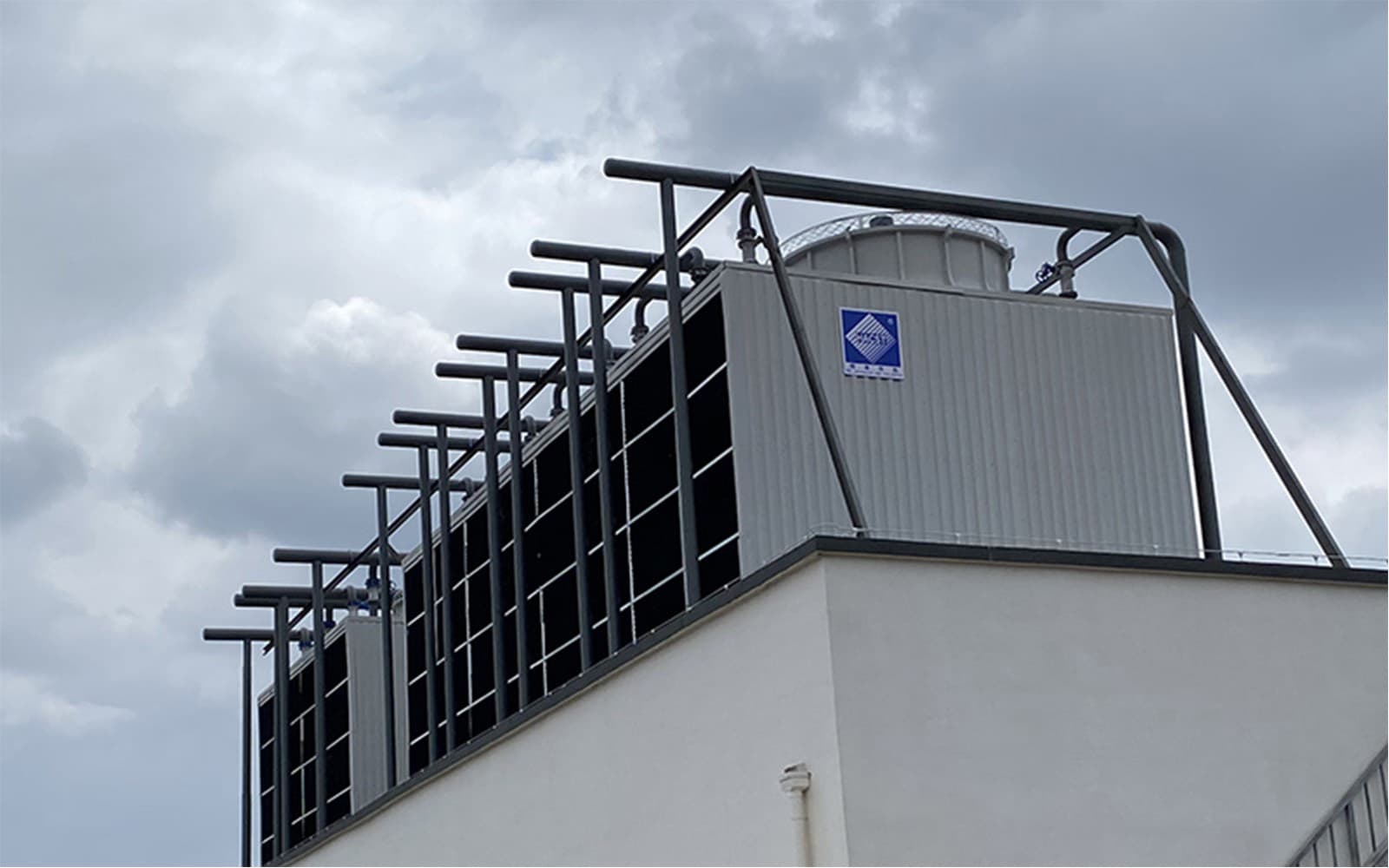

FDKH Cross Flow Open Cooling Tower Get a Quote Now
♦Space Saving, Light-duty Structures
Using specially designed infill which ensure high efficient heat transferring, heat transfer area increased significantly, smaller installing area, due to the optimization design of steel structure, operating weight greatly reduced accordingly.
♦Energy Saving, Low Noise
Adopting small ventilation resistance packing and special designed FRP/aluminum alloy high efficiency fan, greatly reduced the motor power. Double speed motor for optional to power saving according to customers’ special requirements.
Special designed low noise FRP/aluminum alloy material wing type axial flow fan and motor, so as to reduce the running noise of cooling tower. If double speed motor running at low speed in the night, the noise can go down by 2 to 3 db (A).
♦Good Corrosion Resistance
Tower casing, tank and panel are made up of high corrosion resistance performance FRP material, and Galvanized steel structure improves the corrosion resistance performance of the cooling tower, no need additional anti-corrosion within normal service life.
♦Convenient combination and Easy Maintenance
Combinations can be used to meet the requirements of different working condition.If limited space in end user, we can also design for the special cooling tower to meet users’ requirements for the performance of thermal and noise.
| Product Model | Design Flow | Inlet Water Temperature | Outlet Water Temperature | Wet-Bulb Temperature | Fan Power | Fan Diameter | Dimension |
| m3/h | °C | °C | °C | kW | mm | mm | |
| FDKH-50 | 50 | 37 | 32 | 28 | 1.5 | 1500 | 3500*1800*1500 |
| FDKH-100 | 100 | 37 | 32 | 28 | 4 | 1500 | 3900*2000*2000 |
| FDKH-125 | 125 | 37 | 32 | 28 | 5.5 | 1500 | 3900*2000*2000 |
| FDKH-150 | 150 | 37 | 32 | 28 | 5.5 | 1800 | 4200*2200*2500 |
| FDKH-175 | 175 | 37 | 32 | 28 | 7.5 | 2100 | 4400*2400*2500 |
| FDKH-200 | 200 | 37 | 32 | 28 | 7.5 | 2200 | 4600*2500*2500 |
| FDKH-250 | 250 | 37 | 32 | 28 | 11 | 2500 | 5500*2800*2500 |
| FDKH-300 | 300 | 37 | 32 | 28 | 11 | 2800 | 5800*3100*3000 |
| FDKH-350 | 350 | 37 | 32 | 28 | 11 | 3000 | 6000*3300*3500 |
| FDKH-400 | 400 | 37 | 32 | 28 | 15 | 3000 | 6000*3300*4000 |
| FDKH-450 | 450 | 37 | 32 | 28 | 15 | 3400 | 6500*3700*3500 |
| FDKH-500 | 500 | 37 | 32 | 28 | 18.5 | 3400 | 6500*3700*4000 |
| FDKH-550 | 550 | 37 | 32 | 28 | 18.5 | 3600 | 6700*3900*4000 |
| FDKH-600 | 600 | 37 | 32 | 28 | 22 | 3600 | 7100*3900*4000 |
| FDKH-650 | 650 | 37 | 32 | 28 | 22 | 3800 | 7300*4100*4000 |
| FDKH-700 | 700 | 37 | 32 | 28 | 22 | 4200 | 7700*4500*4000 |
| FDKH-750 | 750 | 37 | 32 | 28 | 22 | 4200 | 7700*4500*4500 |
| FDKH-800 | 800 | 37 | 32 | 28 | 30 | 4200 | 7700*4500*4500 |
| FDKH-850 | 850 | 37 | 32 | 28 | 30 | 4500 | 8000*4800*4500 |
| FDKH-900 | 900 | 37 | 32 | 28 | 37 | 4500 | 8000*4800*4500 |
| FDKH-950 | 950 | 37 | 32 | 28 | 37 | 4700 | 8200*5000*4500 |
| FDKH-1000 | 1000 | 37 | 32 | 28 | 45 | 4700 | 8200*5000*5000 |
