DBNL Bottle Type Cooling Tower Get a Quote Now

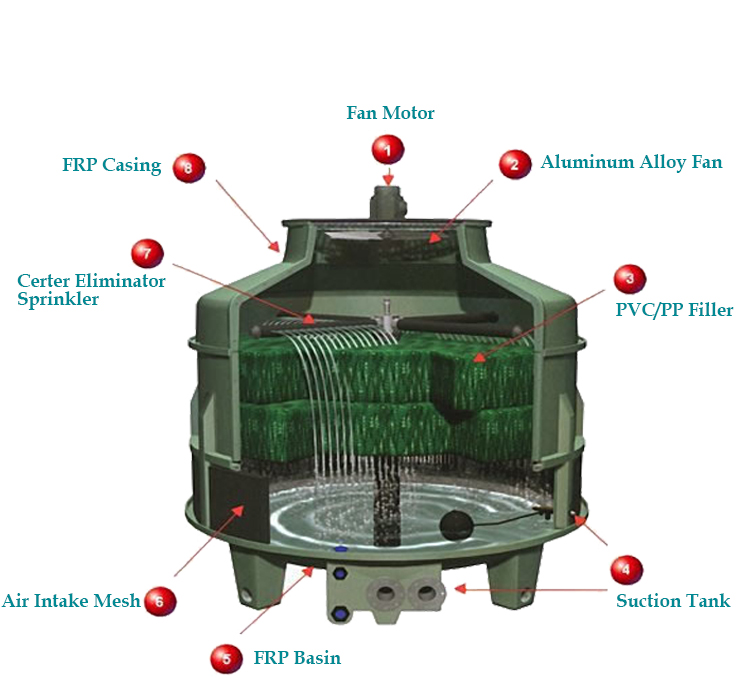

Open Cooling Tower Framework Map:
1.Customization is available. We have more than 60 engineers can provide customized proposal for you based on your requirement.
2. Engineers overseas technical service available.
3. Free easy-wear spare parts are available.
4. All English Manuals and Documents are available
5. We can offer you the best payment term
6. 24-month warranty period
| Model | Height | Diameter | Air flow(m3/h) | Fan diameter(mm) | Motor Power(KW) |
| DBNL-12 | 2033 | 1210 | 7200 | 700 | 0.6 |
| DBNL-20 | 2123 | 1460 | 12400 | 800 | 0.8 |
| DBNL-30 | 2342 | 1912 | 18000 | 1200 | 0.8 |
| DBNL-40 | 2842 | 1912 | 21500 | 1200 | 1.1 |
| DBNL-50 | 2830 | 2215 | 28000 | 1400 | 1.5 |
| DBNL-60 | 3080 | 2215 | 32300 | 1400 | 1.5 |
| DBNL-70 | 3094 | 2629 | 39200 | 1600 | 2.2 |
| DBNL-80 | 3344 | 2629 | 43400 | 1600 | 2.2 |
| DBNL-100 | 3294 | 3134 | 56000 | 1800 | 3 |
| DBNL-125 | 3544 | 3134 | 67200 | 1800 | 4 |
| DBNL-150 | 3553 | 3732 | 84000 | 2400 | 4 |
| DBNL-175 | 3803 | 3732 | 94300 | 2400 | 5.5 |
| DBNL-200 | 3835 | 4342 | 112000 | 2800 | 5.5 |
| DBNL-250 | 4085 | 4342 | 134300 | 2800 | 7.5 |
| DBNL-300 | 4223 | 5134 | 168000 | 3400 | 7.5 |
| DBNL-350 | 4473 | 5134 | 187400 | 3400 | 11 |
| DBNL-400 | 4618 | 6044 | 224000 | 3800 | 11 |
| DBNL-450 | 4868 | 6044 | 242000 | 3800 | 11 |
| DBNL-500 | 5219 | 6476 | 280000 | 4200 | 15 |
| DBNL-600 | 5719 | 6476 | 302200 | 4200 | 18.5 |
| DBNL-700 | 5589 | 7766 | 393500 | 5000 | 18.5 |
| DBNL-800 | 6089 | 7766 | 408000 | 5000 | 22 |
| DBNL-900 | 6040 | 8836 | 505200 | 6000 | 22 |
| DBNL-1000 | 6540 | 8836 | 510300 | 6000 | 30 |
